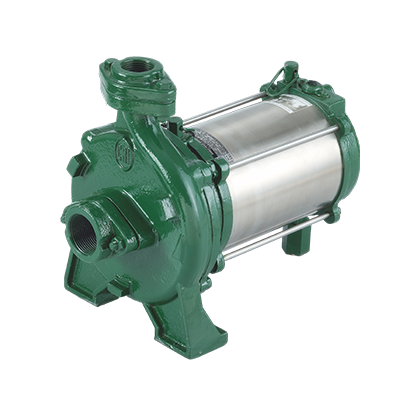

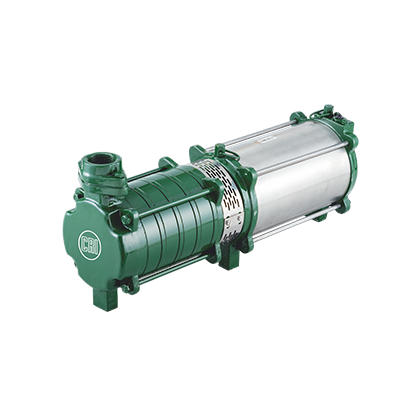

Horizontal Openwell Submersible Pumps ( CSS / CSS-J / Selfy+ Series)
Need a tough and reliable water pump? Look no further than the CSS series. With pumps that can handle everything from your garden to your shower, the CSS is all about giving you a strong, steady stream of water, whether it’s the more modest 1 hp submersible or the mighty 1.5 hp submersible pump. These are designed with superior materials for unmatched durability and performance, solidifying their status as the best open-well submersible pump choice for residential applications.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- High operating efficiency
- Motor is designed with higher cooling effect to ensure longer life
- Easy to dismantle and repair
- Available in SS304, CI, and Noryl impellers
- Available with 3 metre and 10 metre cable length
All you need to know about - Horizontal Openwell Submersible Pumps (CSS Series)
Specifications
| Power Range | 0.37 kW – 2.2 kW (0.5 HP – 3 HP) |
| Version | Single phase 220 – 240V, Three phase 380 – 415V, 50Hz AC Supply |
| Maximum Head | Up to 56.5 Metre |
| Maximum Flow Rate | Up to 17 lps (61.2 m³/hr) |
Material of Construction
| Part Name | Material |
|---|---|
| Impeller | SS 304 / Noryl / Cast Iron |
| Bracket | Cast Iron |
| Casing | Cast Iron |
| Motor Shaft | SS 410 |
| Motor Body | SS 304 |
