Process Pumps

Experience the pinnacle of efficiency and reliability with the ECP series of Process Pumps by CRI, meticulously crafted for applications such as paper stock, fibrous pulp and effluent, wastewater, and beyond. The integrated connecting frame with a bearing cover ensures reduced component wear and enhanced reliability, guaranteeing enduring performance in even the most demanding environments. Additionally, the external shim set arrangement restores impeller clearance, preserving pump efficiency for optimal operation.Featuring a large oil sump for increased Mean Time Between Failures (MTBF) and a graphite-impregnated PTFE mechanical seal for environmental safety, the ECP SERIES delivers robust and efficient solutions for your fluid management needs.

Applications

Key Features

All you need to know About – Centrifugal Monoblock Pump (END SUCTION- ECP Series)

Specifications

Max. Flow 2500 m³/h
Max. Head 100 m
Max. Power 315 kW
Max. Pressure 16 bar
Max. Liquid Temp 140°C
Speed in rpm 960 / 1450
Max. Solid Size 95 mm
Max. Outlet Size 350 mm

Discover the epitome of engineering excellence with the ECW SERIES – EN 733 Water & Process Pumps by CRI. Crafted with meticulous precision, these pumps are engineered to deliver unparalleled efficiency and reliability, perfectly suited to meet the rigorous demands of industrial and commercial applications. Featuring a maximum flow rate of 550 m³/h and a head up to 100 meters, the ECW SERIES ensures optimal performance even in the most challenging environments. Its patented design includes a serrated and double flat impeller nut for enhanced durability, complemented by a stuffing box for efficient cooling. Compliant with DIN 24255 standards, these pumps minimize shaft deflection, extending the life of mechanical seals and bearings for prolonged operation with minimal downtime. Available in both mechanical seal and soft-packed stuffing box designs, the ECW SERIES is meticulously engineered for maximum efficiency and reduced operating costs.

Applications

Key Features

All you need to know About – Centrifugal Monoblock Pump (ECW Series- EN 733)

Specifications

Max. Flow 720 m³/h
Max. Head 110 m
Max. Power 150 kW
Max. Pressure 16 bar
Max. Liquid Temp 260°C
Speed in rpm 950 / 1480 / 2900
Max. Solid Size 50 mm

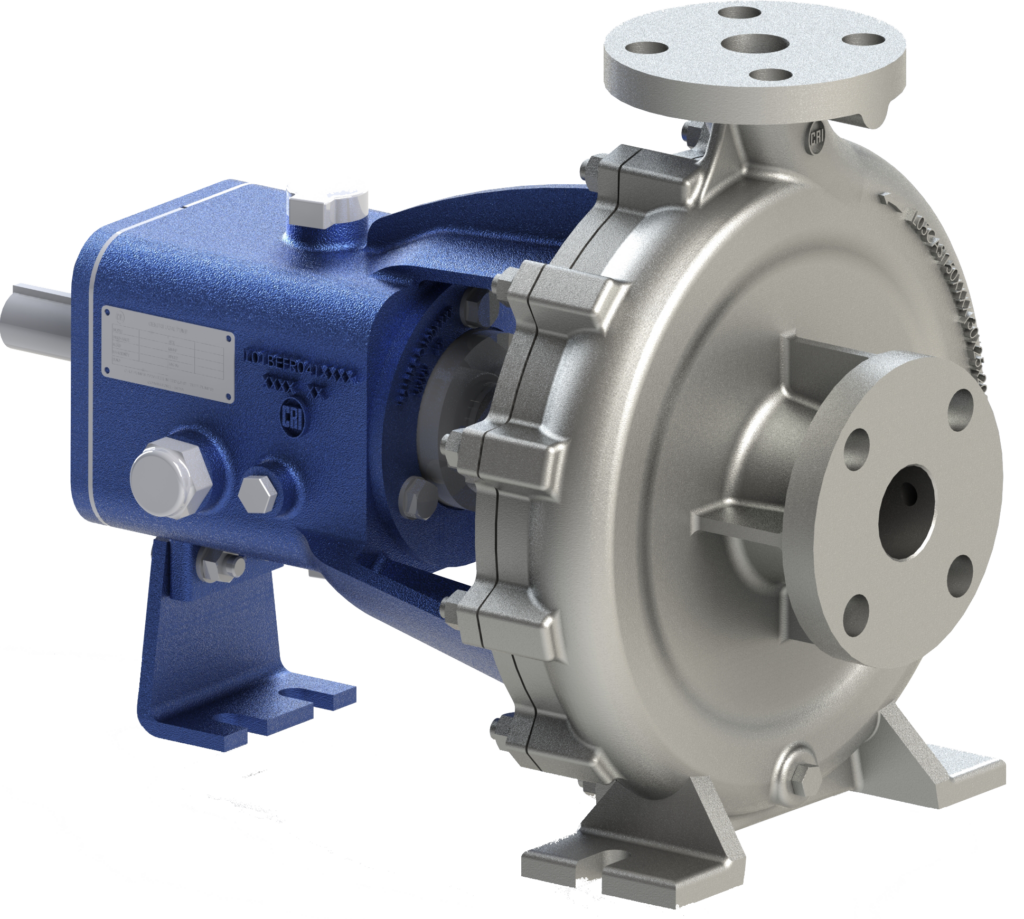

Experience the cutting-edge technology and unwavering reliability of the IL SERIES Process Pumps by CRI, and elevate your industrial efficiency and performance to new heights. With a maximum flow rate of 23 m³/h and a head up to 64 meters, these pumps are tailored to excel across a diverse range of industrial applications. Featuring a patented design and a semi-open impeller, coupled with a common seal housing for gland packing and mechanical seal, the IL SERIES ensures optimal performance in every operation. The flange conforms to ANSI B 16.5 Class 150 standards, guaranteeing seamless integration into existing systems. Designed for ease of maintenance, the IL SERIES boasts a back pull-out design with splash oil lubrication, facilitating hassle-free servicing. With a maximum pressure of 10 bar and the ability to handle liquid temperatures up to 120°C, these pumps are the epitome of versatility and reliability, making them the ideal choice for even the most demanding environments.

Applications

Key Features

All you need to know About – Centrifugal Monoblock Pump (IL Series)

Specifications

Max. Flow 23 m³/h
Max. Head 64 m
Max. Power 7.5 kW
Max. Pressure 10 bar
Max. Liquid Temp 120°C
Speed in rpm 1450 / 2900
Max. Outlet Size 32 mm

Experience the epitome of reliability and performance with the ECC SERIES – ANSI B73.1 Process Pumps by CRI.Meticulously crafted to deliver unmatched performance and reliability, these pumps redefine industry standards. With a maximum flow rate of 720 m³/h, a head up to 110 meters, and the ability to withstand pressures up to 16 bar, the ECC SERIES is engineered to tackle the most formidable industrial challenges with ease. Its semi-open impeller efficiently handles chemical slurries, while the special jacket provision ensures optimal performance even with hot liquids. Designed for ease of maintenance, the ECC SERIES features a back pull-out design, allowing for hassle-free servicing. Moreover, the inclusion of gland and mechanical seal options enhances versatility, catering to diverse operational requirements. From handling corrosive liquids to managing demineralized water and general refinery services, these pumps are ideal for a wide range of applications.

Applications

Key Features

All you need to know About – Centrifugal Monoblock Pump (ECC Series- ANSI B73.1)

Specifications

Max. Flow Upto 550 m³/hr
Max. Head Upto 100 m
Max. Power 200 kW
Max. Speed 500 – 3500 rpm
