End Suction Pumps

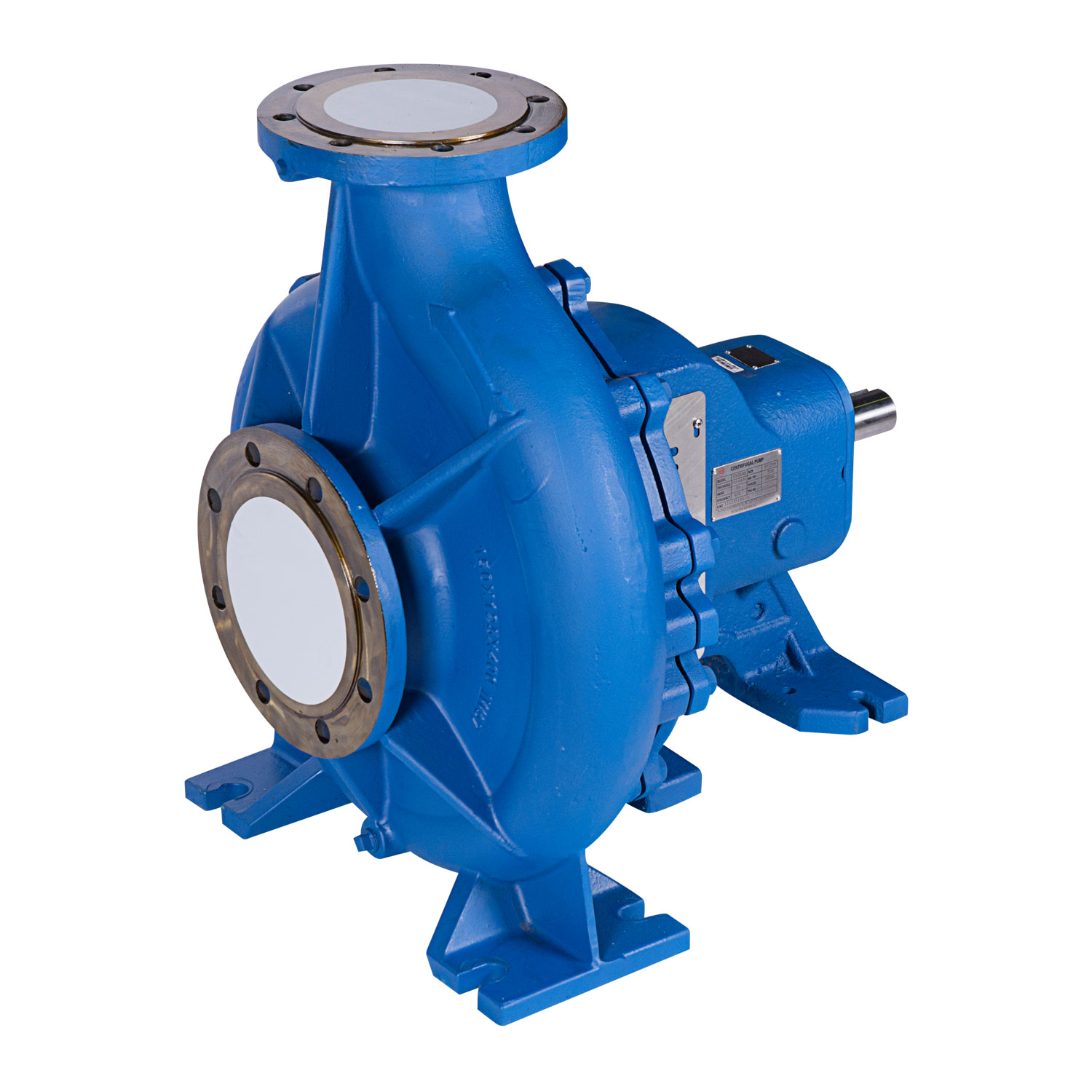

Discover the epitome of engineering excellence with the ECW SERIES – EN 733 Water & Process Pumps by CRI. Crafted with meticulous precision, these pumps are engineered to deliver unparalleled efficiency and reliability, perfectly suited to meet the rigorous demands of industrial and commercial applications. Featuring a maximum flow rate of 550 m³/h and a head up to 100 meters, the ECW SERIES ensures optimal performance even in the most challenging environments. Its patented design includes a serrated and double flat impeller nut for enhanced durability, complemented by a stuffing box for efficient cooling. Compliant with DIN 24255 standards, these pumps minimize shaft deflection, extending the life of mechanical seals and bearings for prolonged operation with minimal downtime. Available in both mechanical seal and soft-packed stuffing box designs, the ECW SERIES is meticulously engineered for maximum efficiency and reduced operating costs.
Applications
- Homogenization of heavy sludge with solid particles
- Removal of sedimentary deposits
- Balancing tanks
- Sewage tanks
- Digesters
- Thickeners
- Flow acceleration
- Biogas mixing tanks
- Ice prevention
- Biogas post-digesters
- Mixture of high viscosity liquids
Key Features
- Compliant with ANSI B73.1 standards.
- High durability for chemical processing
- Corrosion-resistant materials for aggressive fluids
All you need to know About – Centrifugal Monoblock Pump (ECW Series- EN 733)
Specifications
| Max. Flow | 720 m³/h |
| Max. Head | 110 m |
| Max. Power | 150 kW |
| Max. Pressure | 16 bar |
| Max. Liquid Temp | 260°C |
| Speed in rpm | 950 / 1480 / 2900 |
| Max. Solid Size | 50 mm |

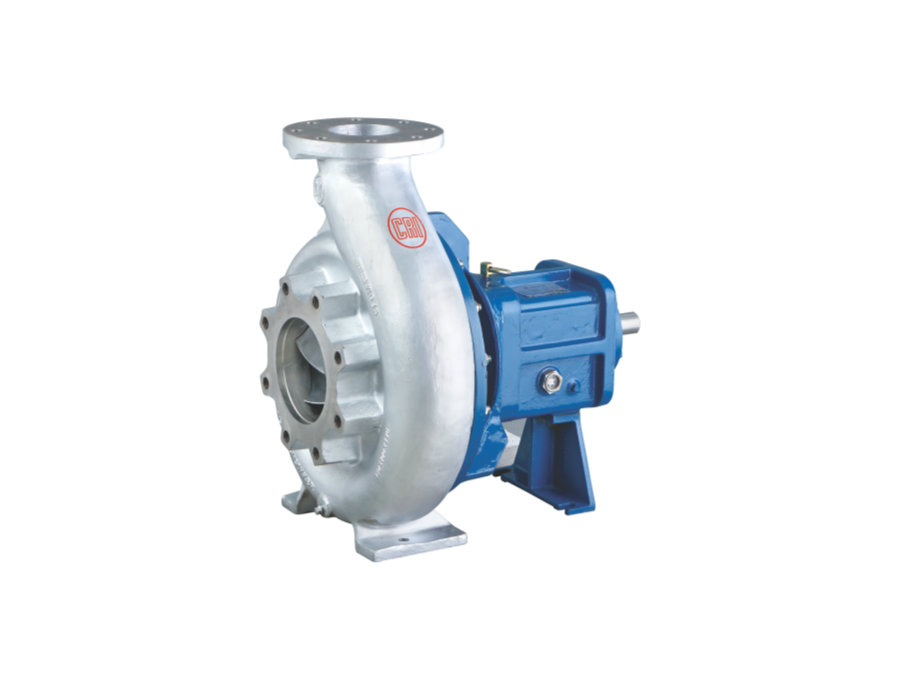

Experience the epitome of reliability and performance with the ECC SERIES – ANSI B73.1 Process Pumps by CRI.Meticulously crafted to deliver unmatched performance and reliability, these pumps redefine industry standards. With a maximum flow rate of 720 m³/h, a head up to 110 meters, and the ability to withstand pressures up to 16 bar, the ECC SERIES is engineered to tackle the most formidable industrial challenges with ease. Its semi-open impeller efficiently handles chemical slurries, while the special jacket provision ensures optimal performance even with hot liquids. Designed for ease of maintenance, the ECC SERIES features a back pull-out design, allowing for hassle-free servicing. Moreover, the inclusion of gland and mechanical seal options enhances versatility, catering to diverse operational requirements. From handling corrosive liquids to managing demineralized water and general refinery services, these pumps are ideal for a wide range of applications.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
Key Features
- Industrial Washing
- Bottle Washing
- Cooling
- Desalination
- Reverse Osmosis Systems
- Ultra Filtration Systems
- Filter Press
- Strengthened cartridge seals
All you need to know About – Centrifugal Monoblock Pump (ECC Series- ANSI B73.1)
Specifications
| Max. Flow | Upto 550 m³/hr |
| Max. Head | Upto 100 m |
| Max. Power | 200 kW |
| Max. Speed | 500 – 3500 rpm |
Discover the epitome of engineering excellence with the ECW SERIES – EN 733 Water & Process Pumps by CRI. Crafted with meticulous precision, these pumps are engineered to deliver unparalleled efficiency and reliability, perfectly suited to meet the rigorous demands of industrial and commercial applications. Featuring a maximum flow rate of 550 m³/h and a head up to 100 meters, the ECW SERIES ensures optimal performance even in the most challenging environments. Its patented design includes a serrated and double flat impeller nut for enhanced durability, complemented by a stuffing box for efficient cooling. Compliant with DIN 24255 standards, these pumps minimize shaft deflection, extending the life of mechanical seals and bearings for prolonged operation with minimal downtime. Available in both mechanical seal and soft-packed stuffing box designs, the ECW SERIES is meticulously engineered for maximum efficiency and reduced operating costs.
Applications
- Homogenization of heavy sludge with solid particles
- Removal of sedimentary deposits
- Balancing tanks
- Sewage tanks
- Digesters
- Thickeners
- Flow acceleration
- Biogas mixing tanks
- Ice prevention
- Biogas post-digesters
- Mixture of high viscosity liquids
Key Features
- Compliant with ANSI B73.1 standards.
- High durability for chemical processing
- Corrosion-resistant materials for aggressive fluids
All you need to know About – Centrifugal Monoblock Pump (ECW Series- EN 733)
Specifications
| Max. Flow | 720 m³/h |
| Max. Head | 110 m |
| Max. Power | 150 kW |
| Max. Pressure | 16 bar |
| Max. Liquid Temp | 260°C |
| Speed in rpm | 950 / 1480 / 2900 |
| Max. Solid Size | 50 mm |
Experience the epitome of reliability and performance with the ECC SERIES – ANSI B73.1 Process Pumps by CRI.Meticulously crafted to deliver unmatched performance and reliability, these pumps redefine industry standards. With a maximum flow rate of 720 m³/h, a head up to 110 meters, and the ability to withstand pressures up to 16 bar, the ECC SERIES is engineered to tackle the most formidable industrial challenges with ease. Its semi-open impeller efficiently handles chemical slurries, while the special jacket provision ensures optimal performance even with hot liquids. Designed for ease of maintenance, the ECC SERIES features a back pull-out design, allowing for hassle-free servicing. Moreover, the inclusion of gland and mechanical seal options enhances versatility, catering to diverse operational requirements. From handling corrosive liquids to managing demineralized water and general refinery services, these pumps are ideal for a wide range of applications.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
Key Features
- Industrial Washing
- Bottle Washing
- Cooling
- Desalination
- Reverse Osmosis Systems
- Ultra Filtration Systems
- Filter Press
- Strengthened cartridge seals
All you need to know About – Centrifugal Monoblock Pump (ECC Series- ANSI B73.1)
Specifications
| Max. Flow | Upto 550 m³/hr |
| Max. Head | Upto 100 m |
| Max. Power | 200 kW |
| Max. Speed | 500 – 3500 rpm |

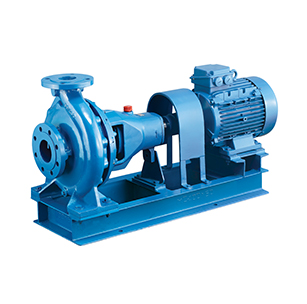

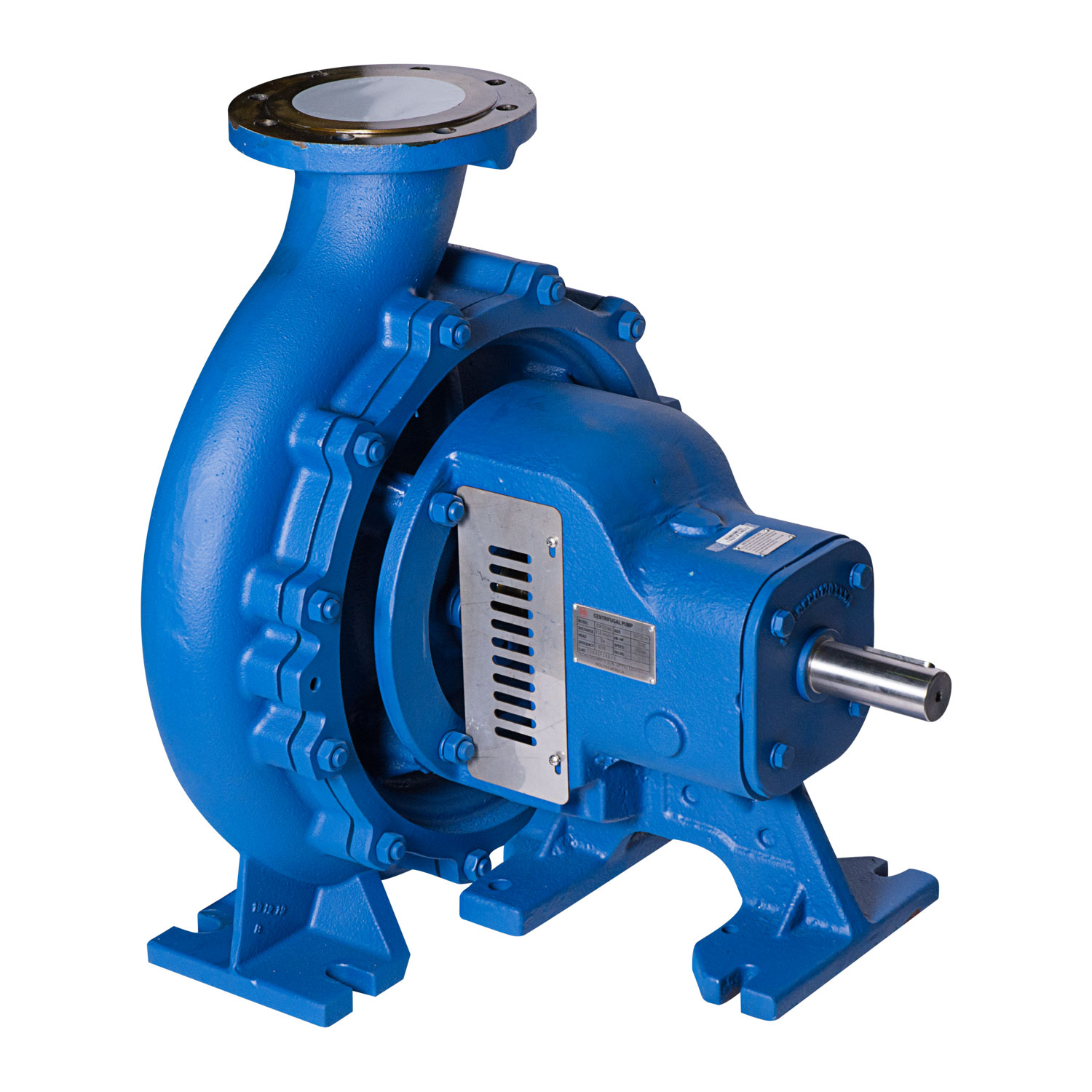

Discover the ECW SERIES End Suction Pumps by CRI, meticulously designed to deliver cost-effective and reliable performance across a wide range of applications. These single-stage, back pull-out type centrifugal pumps offer high efficiency, boasting a maximum flow rate of up to 600 m³/h and a head of up to 100 meters. Engineered to handle operating temperatures up to 90°C, the ECW SERIES comes in delivery sizes ranging from DN 32 to DN 150, catering to diverse requirements. Widely utilized in HVAC, irrigation, and industries including food, sugar, paper, chemical, cement, and construction, these pumps ensure smooth hydraulic performance with easy maintenance, reliability, and long-lasting operation.
Applications
- Airports and ports
- Fireworks industries
- Commercial complexes
- Petrochemical industries
- Gas plants
- Godowns
- Power stations
- High-rise buildings
- Marine applications
Key Features
- Optimized hydraulics design
- Common housing for gland packing & mechanical seal versions
- Engineered bearing frame
- Ejecting bolts provision
- Replaceable wear rings
- Contoured lock nut* with double flat and helical groove option
All you need to know about - End Suction Pumps (ECW Series)
Specifications
| Max. Flow | Upto 550 m³/Hr |
| Max. Head | Upto 100 m |
| Max. Power | 200 kW |
| Max. Speed | 500 – 3500 rpm |
Material of Construcation
TYPE C
| Parts Name | Material |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Stuffing Box | Cast Iron |
| Wear Ring | Cast Iron |
| Bearing Frame | Cast Iron |
| Shaft | SS 431 |
| Shaft Sleeve | SS 410 |
TYPE B
| Parts Name | Material |
| Casing | Cast Iron |
| Impeller | Bronze LTB2 |
| Stuffing Box | Cast Iron |
| Wear Ring | LTB4 |
| Bearing Frame | Cast Iron |
| Shaft | SS 431 |
| Shaft Sleeve | SS 410 |
TYPE N
| Parts Name | Material |
| Casing | CF8M (SS316) |
| Impeller | CF8M (SS316) |
| Stuffing Box | CF8M (SS316) |
| Wear Ring | SS 304 |
| Bearing Frame | Cast Iron |
| Shaft | SS 316 |
| Shaft Sleeve | SS 316 |
TYPE S
| Parts Name | Material |
| Casing | CF8 (SS 304) |
| Impeller | CF8 (SS 304) |
| Stuffing Box | CF8 (SS 304) |
| Wear Ring | SS 304 |
| Bearing Frame | Cast Iron |
| Shaft | SS 304 |
| Shaft Sleeve | SS 304 |
TYPE C
| Parts Name | Material |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Stuffing Box | Cast Iron |
| Wear Ring | Cast Iron |
| Bearing Frame | Cast Iron |
| Shaft | SS 431 |
| Shaft Sleeve | SS 410 |
TYPE B
| Parts Name | Material |
| Casing | Cast Iron |
| Impeller | Bronze LTB2 |
| Stuffing Box | Cast Iron |
| Wear Ring | LTB4 |
| Bearing Frame | Cast Iron |
| Shaft | SS 431 |
| Shaft Sleeve | SS 410 |
TYPE N
| Parts Name | Material |
| Casing | CF8M (SS316) |
| Impeller | CF8M (SS316) |
| Stuffing Box | CF8M (SS316) |
| Wear Ring | SS 304 |
| Bearing Frame | Cast Iron |
| Shaft | SS 316 |
| Shaft Sleeve | SS 316 |
TYPE S
| Parts Name | Material |
| Casing | CF8 (SS 304) |
| Impeller | CF8 (SS 304) |
| Stuffing Box | CF8 (SS 304) |
| Wear Ring | SS 304 |
| Bearing Frame | Cast Iron |
| Shaft | SS 304 |
| Shaft Sleeve | SS 304 |
