Navigate water level fluctuations effortlessly with the CRI Openwell Submersible Pumpset, the perfect ally for your irrigation and water management needs. Designed to operate seamlessly underwater, this pump set promises durability and efficient performance.
Encased in protective polymers and equipped with a cooling system to regulate temperature, it stands as an example of reliability. A rubber diaphragm ensures pressure balance, enhancing the motor’s protection against variations. With its superior water extraction capacity, ability to handle voltage fluctuations smoothly, and straightforward installation, it emerges as the ideal choice for diverse water pumping requirements.
Explore Our OWS Solutions
Discover Vertical Openwell Submersible Pumps from CRI, perfectly suited for open wells and tanks where water levels vary significantly. Engineered to work efficiently underwater, these pumps integrate durable, water-cooled motors with cutting-edge sealing technology, ensuring reliable and energy-efficient operation in diverse water conditions.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
- Industrial
- Rural Water Supply
Key Features
- No need for a pump house.
- No suction and priming problems.
- Noiseless operation.
- High operating efficiency.

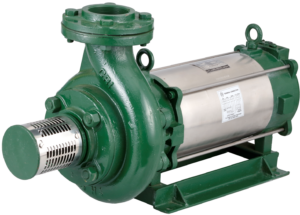

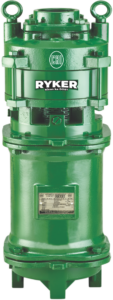

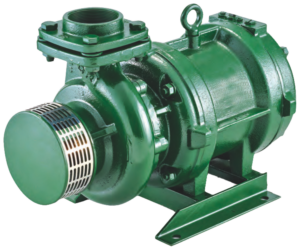

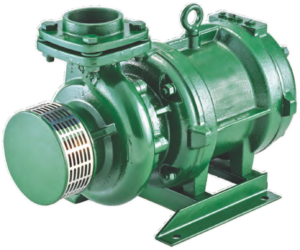

All you need to know about – Open Submersible Pump (Ryker Series)
Specifications
| Power Range | 2.2 kW – 15 kW (3HP – 20HP) |
| Speed | 2900 rpm |
| Version | Three Phase 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 153 metres |
| Maximum Flow Rate | 16 LPS (57.6 m³/hr) |
| Method of Starting | Direct On-line (D.O.L), Star Delta (SD) |
| Type of Duty | S1 (Continuous) |

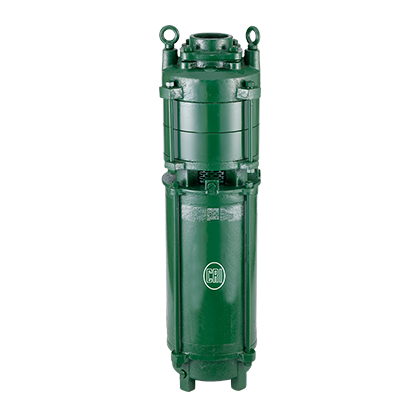

CRI’s Openwell Submersible Pumps- CV series embodies the promise of CRI’s reliable productions with the excellence acquired by 60+ years of expertise. The pinnacle of durability and performance has been incorporated to suit environments with wide water fluctuations. Tailored for a range of solutions, agriculture, industrial, domestic, and more, the higher water resistance capability of the double-side carbon pads has been backed by an extremely tough and hard-wearing lubricated journal bearing. Offering stability in extreme voltage fluctuation ranges featuring a motor body available in SS 304 & Cast Iron, the series ensures a longer life of your processes and machine.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
- Industrial
- Rural Water Supply
Key Features
- No suction and priming problems.
- Noiseless operation.
- High operating efficiency.
- No need for a pump house.
- Extremely tough and hard-wearing lubricated journal bearings are used.
- Can be easily dismantled and repaired.
- Dynamically balanced rotating parts ensure minimum vibration and longer life.
- Designed for wide voltage fluctuations.
- Motor body available in SS 304 & Cast Iron.
- Motor designed with higher cooling effect ensures longer life.
All you need to know about – Open Submersible Pump (CV Series)
Specifications
| Power Range | Horizontal: 2.2 kW – 15 kW (3HP – 20HP), Vertical: 2.2 kW – 37 kW (3HP – 50HP) |
| Speed | 2900 rpm |
| Version | Three phase 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 341 metre |
| Maximum Flow Rate | 54 lps (194 m³/h) |
| Degree of Protection | IP 58 |
| Degree of Rotation | Electrically Reverse |
| Method of Starting | Direct On-line (D.O.L) up to 5.5 kW, Star Delta (SD) up to 37 kW |
| Type of Duty | S1 (Continuous) |
| Normal Delivery Size | 50, 65, 80, 100 & 125 mm |
| Maximum Starts per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron / SS 410 / Bronze |
| Bracket | Cast Iron |
| Motor Shaft | SS 410 |
This is the additional content that will be shown or hidden.

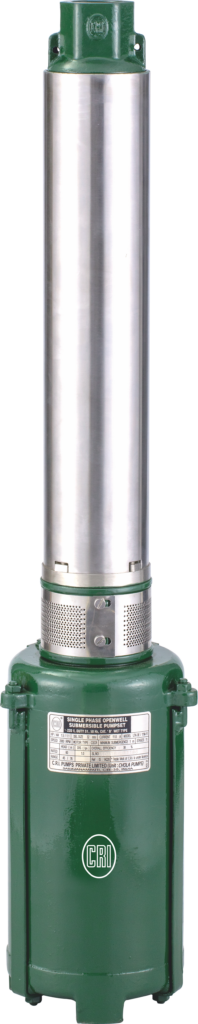

The LTK Series of CRI’s Vertical open well submersible Pumpsets are designed optimally for all open well tanks where there is a wider range of water level fluctuations. Equipped with a rewindable water-cooled Prime Motor, the operational efficiency is taken up a notch. With a dynamic motor that promotes exceptional cooling and longevity, the LTK Series excels across various applications – from agriculture to domestic and industrial settings. Experience the CRI difference with pumps designed for wide voltage adaptability, operational efficiency, and minimal vibration for a lasting service life.
Applications
- Gardens
- Industrial
- Rural Water Supply
- Agriculture
- Domestic
- Irrigation
Key Features
- Easy to dismantle and repair.
- Wider applicability: irrigation, domestic, multi-storey buildings, rural water supply, gardens, and more.
- Motor is designed with a higher cooling effect to ensure longevity.
- Noiseless operation.
- High operating efficiency.
All you need to know about – Open Submersible Pump (LTK Series)
Specifications
| Power Range | 0.75 kW & 1.1 kW (1HP & 1.5HP) |
| Speed | 2880 rpm |
| Version | Single phase 220-240V, 50Hz AC Supply |
| Maximum Total Head | 89 metre |
| Maximum Flow Rate | 1.6 lps (6 m³/h) |
| Degree of Protection | IP 58 |
| Degree of Rotation | Counter Clockwise from the driving end |
| Method of Starting | Single Phase – CSCR |
| Type of Duty | S1 (Continuous) |
| Maximum Starts per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Stator Shell | Noryl |
| Diaphragm | Mild Steel |
| Lower Housing / Upper Housing | High Nitrile Rubber |
| Shaft | Cast Iron |
| Shaft Seal | SS 410 |
| Thrust Assembly | Nitrile Butyl Rubber |
| Journal Bushes | SS 420 with Graphite Carbon |
| Check Valve Housing | Carbon |
| Casing / Outer Shell | Cast Iron |
| Impeller | Noryl |
| Diffuser Chamber – LTK Series | Noryl |
| Suction Interconnector | Cast Iron |
| Pump Shaft | SS 304 |
| Coupling | SS 410 |
This is the additional content that will be shown or hidden.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
- Industrial
- Rural Water Supply
Key Features
- No need for a pump house.
- No suction and priming problems.
- Noiseless operation.
- High operating efficiency.
All you need to know about – Open Submersible Pump (Ryker Series)
Specifications
| Power Range | 2.2 kW – 15 kW (3HP – 20HP) |
| Speed | 2900 rpm |
| Version | Three Phase 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 153 metres |
| Maximum Flow Rate | 16 LPS (57.6 m³/hr) |
| Method of Starting | Direct On-line (D.O.L), Star Delta (SD) |
| Type of Duty | S1 (Continuous) |
CRI’s Openwell Submersible Pumps- CV series embodies the promise of CRI’s reliable productions with the excellence acquired by 60+ years of expertise. The pinnacle of durability and performance has been incorporated to suit environments with wide water fluctuations. Tailored for a range of solutions, agriculture, industrial, domestic, and more, the higher water resistance capability of the double-side carbon pads has been backed by an extremely tough and hard-wearing lubricated journal bearing. Offering stability in extreme voltage fluctuation ranges featuring a motor body available in SS 304 & Cast Iron, the series ensures a longer life of your processes and machine.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
- Industrial
- Rural Water Supply
Key Features
- No suction and priming problems.
- Noiseless operation.
- High operating efficiency.
- No need for a pump house.
- Extremely tough and hard-wearing lubricated journal bearings are used.
- Can be easily dismantled and repaired.
- Dynamically balanced rotating parts ensure minimum vibration and longer life.
- Designed for wide voltage fluctuations.
- Motor body available in SS 304 & Cast Iron.
- Motor designed with higher cooling effect ensures longer life.
All you need to know about – Open Submersible Pump (CV Series)
Specifications
| Power Range | Horizontal: 2.2 kW – 15 kW (3HP – 20HP), Vertical: 2.2 kW – 37 kW (3HP – 50HP) |
| Speed | 2900 rpm |
| Version | Three phase 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 341 metre |
| Maximum Flow Rate | 54 lps (194 m³/h) |
| Degree of Protection | IP 58 |
| Degree of Rotation | Electrically Reverse |
| Method of Starting | Direct On-line (D.O.L) up to 5.5 kW, Star Delta (SD) up to 37 kW |
| Type of Duty | S1 (Continuous) |
| Normal Delivery Size | 50, 65, 80, 100 & 125 mm |
| Maximum Starts per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron / SS 410 / Bronze |
| Bracket | Cast Iron |
| Motor Shaft | SS 410 |
This is the additional content that will be shown or hidden.
The LTK Series of CRI’s Vertical open well submersible Pumpsets are designed optimally for all open well tanks where there is a wider range of water level fluctuations. Equipped with a rewindable water-cooled Prime Motor, the operational efficiency is taken up a notch. With a dynamic motor that promotes exceptional cooling and longevity, the LTK Series excels across various applications – from agriculture to domestic and industrial settings. Experience the CRI difference with pumps designed for wide voltage adaptability, operational efficiency, and minimal vibration for a lasting service life.
Applications
- Gardens
- Industrial
- Rural Water Supply
- Agriculture
- Domestic
- Irrigation
Key Features
- Easy to dismantle and repair.
- Wider applicability: irrigation, domestic, multi-storey buildings, rural water supply, gardens, and more.
- Motor is designed with a higher cooling effect to ensure longevity.
- Noiseless operation.
- High operating efficiency.
All you need to know about – Open Submersible Pump (LTK Series)
Specifications
| Power Range | 0.75 kW & 1.1 kW (1HP & 1.5HP) |
| Speed | 2880 rpm |
| Version | Single phase 220-240V, 50Hz AC Supply |
| Maximum Total Head | 89 metre |
| Maximum Flow Rate | 1.6 lps (6 m³/h) |
| Degree of Protection | IP 58 |
| Degree of Rotation | Counter Clockwise from the driving end |
| Method of Starting | Single Phase – CSCR |
| Type of Duty | S1 (Continuous) |
| Maximum Starts per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Stator Shell | Noryl |
| Diaphragm | Mild Steel |
| Lower Housing / Upper Housing | High Nitrile Rubber |
| Shaft | Cast Iron |
| Shaft Seal | SS 410 |
| Thrust Assembly | Nitrile Butyl Rubber |
| Journal Bushes | SS 420 with Graphite Carbon |
| Check Valve Housing | Carbon |
| Casing / Outer Shell | Cast Iron |
| Impeller | Noryl |
| Diffuser Chamber – LTK Series | Noryl |
| Suction Interconnector | Cast Iron |
| Pump Shaft | SS 304 |
| Coupling | SS 410 |
This is the additional content that will be shown or hidden.

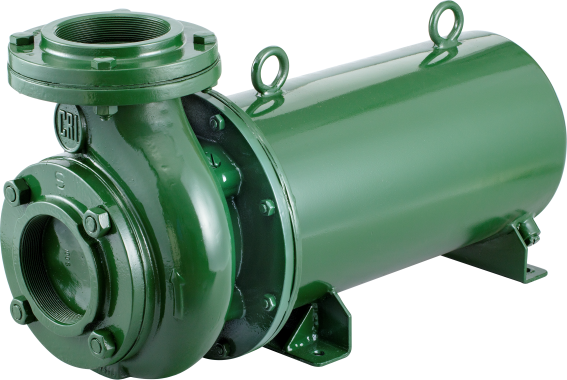

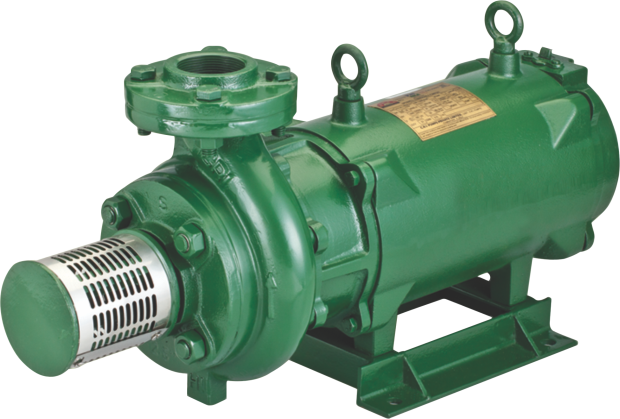

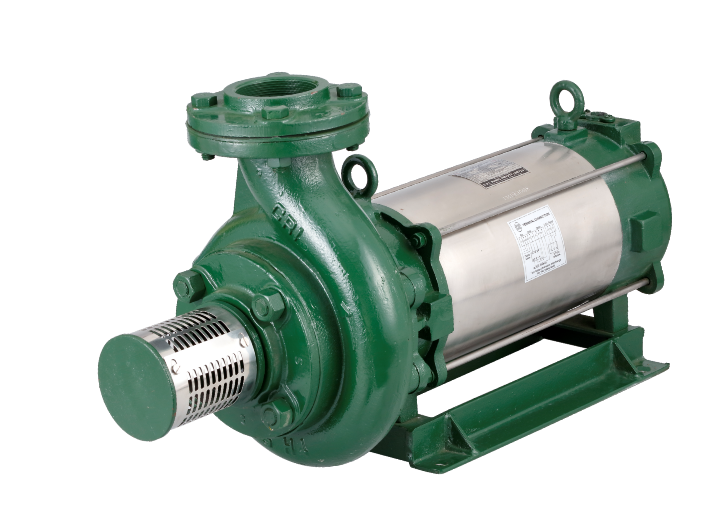

The CSM series of CRI’s Openwell Submersible Pumps are specially designed water-lubricated bearings that are used to withstand the axial thrust loads with minimum wear and tear. CRI’s Submersible pumps offer exceptional value and reliable performance with the double-side carbon pads, which facilitate not only higher wear resistance but also negligible suction and priming problems. Ideal for offering functionality under vast water pressure fluctuations, CRI brings a product that uses significantly less power, as the fluid they pump is pushed and not pulled.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Heavy cooling design.
- High cooling motor.
- Wide voltage operation.
- No need for a pump house.
- No suction and priming problem.
- Vast applications: irrigation, agriculture, domestic, industrial, garden, rural water supply.
All you need to know about – Horizontal Openwell Submersible Pumps (CSM Series)
Specifications
| Power Range | 2.2 kW – 15 kW |
| Speed | 2900 rpm |
| Version | Single Phase – 200-240V; Three Phase – 380-415V, 50Hz AC Supply |
| Maximum Total Head | 153 metre |
| Maximum Flow Rate | 54 lps |
| Degree of Protection | IP 58 |
| Degree of Rotation | Electrically Reversible |
| Method of Starting | Direct On Line (D.O.L), Star Delta (SD) |
| Type of Duty | 50, 65, 80, 100 & 125 mm |
| Maximum Starts Per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Rear Cover / Bracket | Cast Iron |
| Stator Shell | Cast Iron |
| Shaft | SS 410 / EN – 8 |
| Impeller | Cast Iron / SS 410 / Bronze |
| Pump Casting | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Thrust Assembly | SS 420 with Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |
| Journal Bearings | LTB – 4 / LTB – 5 / Carbon |
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Heavy cooling design.
- High cooling motor.
- Wide voltage operation.
- No need for a pump house.
- No suction and priming problem.
- Vast applications: irrigation, agriculture, domestic, industrial, garden, rural water supply.
All you need to know about – Horizontal Openwell Submersible Pumps (Plano Series)
Specifications
| Power Range | 0.37 kW – 1.5 kW (0.5HP – 2HP) |
| Speed | 2880 RPM |
| Version | Single Phase 220 – 240 V, 50Hz, A.C. Supply |
| Maximum Total Head | Up to 45 metre |
| Maximum Flow Rate | Up to 8.5 lps (30.6 m³/hr) |
| Type of Duty | S1 (Continuous) |
Material of Construction
| Part Name | Material |
|---|---|
| Rear cover / Bracket | Cast iron |
| Stator Shell | Cast Iron |
| Shaft | SS 410 / EN – 8 |
| Impeller | Cast Iron / SS 410 / Bronze |
| Pump Casting | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Thrust assembly | SS 420 with graphite carbon |
| Diaphragm | High Nitrile Butyl rubber |
| Journal Bearings | LTB – 4 / LTB – 5 / Carbon |
The CSM series of CRI’s Openwell Submersible Pumps are specially designed water-lubricated bearings that are used to withstand the axial thrust loads with minimum wear and tear. CRI’s Submersible pumps offer exceptional value and reliable performance with the double-side carbon pads, which facilitate not only higher wear resistance but also negligible suction and priming problems. Ideal for offering functionality under vast water pressure fluctuations, CRI brings a product that uses significantly less power, as the fluid they pump is pushed and not pulled.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Heavy cooling design.
- High cooling motor.
- Wide voltage operation.
- No need for a pump house.
- No suction and priming problem.
- Vast applications: irrigation, agriculture, domestic, industrial, garden, rural water supply.
All you need to know about – Horizontal Openwell Submersible Pumps (CSM Series)
Specifications
| Power Range | 2.2 kW – 15 kW |
| Speed | 2900 rpm |
| Version | Single Phase – 200-240V; Three Phase – 380-415V, 50Hz AC Supply |
| Maximum Total Head | 153 metre |
| Maximum Flow Rate | 54 lps |
| Degree of Protection | IP 58 |
| Degree of Rotation | Electrically Reversible |
| Method of Starting | Direct On Line (D.O.L), Star Delta (SD) |
| Type of Duty | 50, 65, 80, 100 & 125 mm |
| Maximum Starts Per Hour | 10 times |
Material of Construction
| Part Name | Material |
|---|---|
| Rear Cover / Bracket | Cast Iron |
| Stator Shell | Cast Iron |
| Shaft | SS 410 / EN – 8 |
| Impeller | Cast Iron / SS 410 / Bronze |
| Pump Casting | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Thrust Assembly | SS 420 with Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |
| Journal Bearings | LTB – 4 / LTB – 5 / Carbon |
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Heavy cooling design.
- High cooling motor.
- Wide voltage operation.
- No need for a pump house.
- No suction and priming problem.
- Vast applications: irrigation, agriculture, domestic, industrial, garden, rural water supply.
All you need to know about – Horizontal Openwell Submersible Pumps (Plano Series)
Specifications
| Power Range | 0.37 kW – 1.5 kW (0.5HP – 2HP) |
| Speed | 2880 RPM |
| Version | Single Phase 220 – 240 V, 50Hz, A.C. Supply |
| Maximum Total Head | Up to 45 metre |
| Maximum Flow Rate | Up to 8.5 lps (30.6 m³/hr) |
| Type of Duty | S1 (Continuous) |
Material of Construction
| Part Name | Material |
|---|---|
| Rear cover / Bracket | Cast iron |
| Stator Shell | Cast Iron |
| Shaft | SS 410 / EN – 8 |
| Impeller | Cast Iron / SS 410 / Bronze |
| Pump Casting | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Thrust assembly | SS 420 with graphite carbon |
| Diaphragm | High Nitrile Butyl rubber |
| Journal Bearings | LTB – 4 / LTB – 5 / Carbon |
You might also like
How can we support you?
