100MM BOREWELL SUBMERSIBLE PUMPS
Genie Series
Zuno Series
Steelix x4 Series

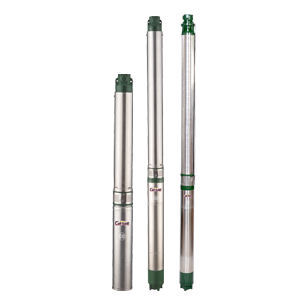

Genie Series
The C.R.I. Genie 100 mm Borewell Submersible Pump, designed with a submersible electric motor, offers peak hydraulic efficiency thanks to its well-crafted impeller and diffuser. It includes a built-in check valve to prevent backflow and mitigate water hammering risks. Constructed with corrosion-resistant thermoplastic and stainless steel shafts, it ensures durability and long-term performance, making it an ideal choice for submersed water extraction applications.
Applications
- Pressure boosting units
- Fire fighting system
- Rural water supply
- Sprinkler system
- Industrial and mining application
- Fountains
Key Features
- Corrosive-resistant stainless steel (SS 3304) shell covered motor.
- High operational efficiency.
- More durability and hygiene.ust bearing to withstand high axial thrust load
- Extremely hardwearing water-lubricated bearing
- Thread-type motor construction ensures rigidity & service feasibility
- Designed for wide voltage operation
All you need to know about – Horizontal Openwell Submersible Pumps (Genie Series)
Specifications
| Power Range | 0.37 kW – 5.5 kW (0.5 HP – 7.5 HP) |
| Speed | 2850 RPM |
| Version | Single Phase 220V, Three Phase 380 – 400V, 50Hz, AC Supply |
| Maximum Total Head | 568 metre |
| Maximum Flow Rate | 7 lps (25.20 m³/h) |
| Maximum Outer Diameter | 98 mm |
| Nominal Outlet Size | 32, 40, 50 & 65 mm |
| Degree of Protection | IP 58 |
| Degree of Rotation | 1 Ph – Counterclockwise from driving end; 3 Ph – Electrically Reversible |
| Thrust Load | 0.37kW – 0.75kW – 650 lbs |
| Minimum Cooling Flow Along the Motor | 0.15 m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | 1 Ph – Capacitor Start Capacitor Run (CSCR); 3 Ph – Direct Online (D.O.L) |
| Maximum Starts Per Hour | 20 times |
Material of Construcation – Pump
| Part Name | Material |
|---|---|
| Suction Housing | Cast Iron |
| Impeller | Noryl / Derlin |
| Diffuser Chamber | SS 304 / Cast Iron / Noryl |
| Check Valve Housing | Cast Iron |
| Check Valve | Derlin |
| Outer Shell | SS 304 |
| Pump Shaft | SS 304 / SS 410 / SS 431 |
| Counter Thrust Pad | SS 304 / NBR / LTB 4 |
| Intermediate Bearing (Sleeve / Bush) | Teflon Carbon / Gunmetal with rubber |
| Coupling | SS 304 / 410 |
| Part Name | Material |
|---|---|
| Shaft Steel | Nitrile Butyl Rubber |
| Rotor Shaft | SS 410 / 431 |
| Stator Shell | SS 441 / SS 304 |
| Journal Bushings | Carbon |
| Snap Ring | SS 316 |
| Thrust Assembly | SS 420 & Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |
| Motor Base | Cast Iron |
This is the additional content that will be shown or hidden.
Zuno Series
Designed for low voltage and high efficiency, the Zuno series of CRI’s Borewell Submersible Pumps is your solution for domestic and municipal water supply. The motor is encapsulated in a corrosive resistance Stainless Steel shell, standing true to the promise of durability in every use. Higher operational efficiency has been assured with a specially designed angular contact bearing to withstand high axial thrust load. The device also facilitates easy removal of the stator for easy service. Additionally, a wider voltage operationality is provided with a non-toxic pre-filled liquid motor- giving the low voltage functionality.
Applications
- Rural water supply
- Sprinkler system
- Pressure boosting units
- Fire fighting system
- Industrial and mining application
- Fountains
Key Features
- Enhanced durability and hygiene
- High operating efficiency
- Specially designed thrust bearing to withstand high axial thrust load
- Easy stator removal for serviceability
- Wide voltage operation design
- Non-toxic pre-filled liquid motor for better low-voltage performance
All you need to know about – 100mm Borewell Submersible (Zuno)
Specifications
| Power Range | 0.37 kW – 2.2 kW (0.5 HP – 3 HP) |
| Speed | 2850 RPM |
| Version | Single phase 230V; Three phase 415V, 50Hz, AC Supply |
| Maximum Total Head | 220 Metre |
| Maximum Flow Rate | 7 lps (25.2 m³/h) |
| Maximum Outer Diameter | 98 mm |
| Nominal Outlet Size | 32, 40 & 50 mm |
| Degree of Protection | IP 58 |
| Degree of Rotation | Counter clockwise from driving end – Single phase |
| Thrust Load | 0.37 kW – 0.75 kW – 650 lbs; 1.1 kW – 1.5 kW – 1000 lbs |
| Minimum Cooling Flow Along the Motor | 0.15 m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | 1Ph – CSCR / CSR |
| Maximum Starts Per Hour | 20 times |
Material of Construcation – Pump
| Part Name | Material |
|---|---|
| Suction Housing | Cast Iron |
| Impeller | Noryl / Delrin |
| Diffuser Chamber | Cast Iron / Noryl / SS 304 |
| Pump Shaft | SS 410 / SS 431 / SS 304 |
| Check Valve Housing | Cast Iron |
| Check Valve | Delrin |
| Outer Shell | SS 304 |
| Counter Thrust Pad | SS 304 / Hylem |
| Intermediate Bearing (Sleeve / Bush) | SS 304 / NBR / LTB 4 (Gun Metal with Rubber) |
| Coupling | SS 304 / 410 |
| Part Name | Material |
|---|---|
| Shaft | Steel |
| Seal | Nitrile Butyl Rubber / Mechanical Seal |
| Rotor Shaft | SS 410 / SS 431 |
| Stator Shell | SS 304 |
| Bearing | SS Ball Bearing & SS Angular Contact Bearing |
| Diaphragm | High Nitrile Butyl Rubber |
This is the additional content that will be shown or hidden.

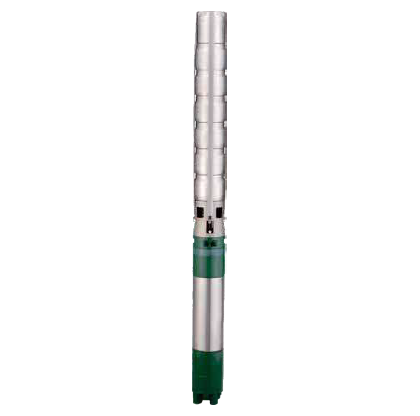

Steelix x4 Series
Introducing the Steelix Series by CRI – our top-of-the-line borewell submersible pumps made from high-quality stainless steel specifically engineered to provide unparalleled protection against corrosion. These pumps are the result of over six decades of industry-leading expertise, incorporating a built-in check valve that guarantees long-lasting performance and durability. With its water-lubricated bush bearings and double-sealed ball bearings, the Steelix Series is designed for optimal hydraulic efficiency, making it ideal for use in saline water and industrial applications. Experience the exceptional longevity and reliability of the Steelix Series from CRI.
Applications
- Pressure boosting units
- Fire fighting system
- Rural water supply
- Sprinkler system
- Industrial and mining application
- Fountains
Key Features
- Vast application: domestic and municipal water supply,
- Corrosive-resistant stainless steel (SS 3304) shell covered motor.
- High operating efficiency
- More durability and hygiene.
- Extremely hardwearing water-lubricated bearing
- Wide voltage operation design
- Rigidity and service feasibility.
All you need to know about – Horizontal Openwell Submersible Pumps (STEELIX Series)
Specifications
| Specification | Details |
|---|---|
| Power Range | 0.37 kW – 7.5 kW (0.5 HP – 10 HP) |
| Speed | 2900 RPM |
| Version | 230V Single-Phase; 50Hz, AC Supply 380 – 415V Three-Phase; 50Hz, AC Supply |
| Maximum Total Head | 487 metre |
| Maximum Flow Rate | Upto 3.05 lps (11 m³/hr) |
| Maximum Outer Diameter | 32, 40 & 50 mm |
| Degree of Protection | IP 58 |
| Degree of Rotation | Single Phase – Counter Clockwise from Driving End Three Phase – Electrically Reversible |
| Minimum Cooling Flow Along the Motor | 0.15 m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Single Phase – Capacitor Start Capacitor Run (CSCR) Three-Phase – DOL / SD |
| Maximum Starts Per Hour | 20 times |
Material of Construcation – Pump
| Part Name | Material |
|---|---|
| Impeller | SS 304 |
| Stage Casting | SS 304 |
| Pump Shaft | SS 304 / SS 431 |
| Bracket | SS 304 |
| Check Valve Housing | SS 304 |
| Inlet Screen | SS 304 |
| Part Name | Material |
|---|---|
| Upper & Lower Housing | Cast Iron |
| Stator Shell | SS 304 / SS 441 |
| Rotor Shaft | SS 431 / SS 410 |
| Journal Bearing | Carbon |
| Thrust Assembly | SS 420 & Graphite Carbon |
