Submersible Pumps (Stainless Steel Grand Series)

Introducing C.R.I.’s Stainless Steel Grand Series Submersible Pumps, the epitome of engineering excellence for high flow and high head applications. Available in 8”, 10”, 12”, and 14” diameters, these pumps deliver maximum flows of up to 810 m³/h and heads of up to 486 meters. Constructed from corrosion-resistant stainless steel, they ensure superior performance across diverse applications, including mining, firefighting, and heavy-duty industrial water supply. Designed to NEMA standards, these pumps guarantee exceptional reliability and global compliance.

Applications

Key Features

All you need to know about – Submersible Pumps (8” Stainless Steel Grand Series)

Specifications

Nominal Diameter 8″ Stainless Steel Grand submersible pumps
Power Range in kW 7.5 – 110 kW
Speed in RPM 2900 RPM
Maximum Flow Rate in m³/h 192 m³/h
Maximum Head in Metre 465 m
Outlet Sizes in Inches 5″

Introducing C.R.I.’s Stainless Steel Grand Series Submersible Pumps, the epitome of engineering excellence for high flow and high head applications. Available in 8”, 10”, 12”, and 14” diameters, these pumps deliver maximum flows of up to 810 m³/h and heads of up to 486 meters. Constructed from corrosion-resistant stainless steel, they ensure superior performance across diverse applications, including mining, firefighting, and heavy-duty industrial water supply. Designed to NEMA standards, these pumps guarantee exceptional reliability and global compliance.

Applications

Key Features

All you need to know about – Submersible Pumps (10” Stainless Steel Grand Series)

Specifications

Nominal Diameter 10″ Stainless Steel Grand submersible pumps
Power Range in kW 13 – 185 kW
Speed in RPM 2900 RPM
Maximum Flow Rate in m³/h 420 m³/h
Maximum Head in Metre 486 m
Outlet Sizes in Inches 6″

Introducing C.R.I.’s Stainless Steel Grand Series Submersible Pumps, the epitome of engineering excellence for high flow and high head applications. Available in 8”, 10”, 12”, and 14” diameters, these pumps deliver maximum flows of up to 810 m³/h and heads of up to 486 meters. Constructed from corrosion-resistant stainless steel, they ensure superior performance across diverse applications, including mining, firefighting, and heavy-duty industrial water supply. Designed to NEMA standards, these pumps guarantee exceptional reliability and global compliance.

Applications

Key Features

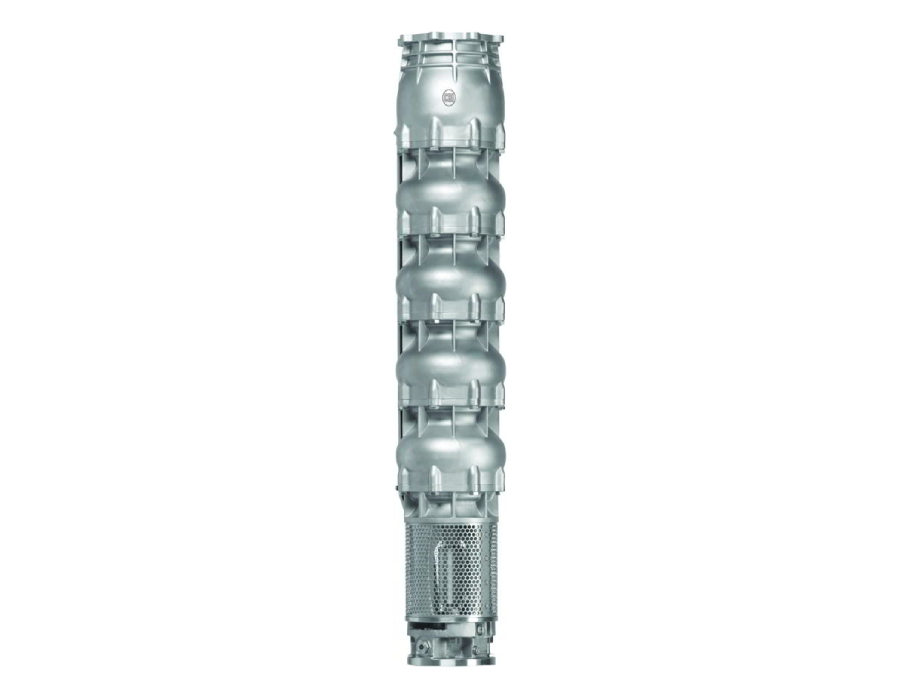

All you need to know about – Submersible Pumps (12” Stainless Steel Grand Series)

Specifications

Nominal Diameter 12″ Stainless Steel Grand submersible pumps
Power Range in kW 40 – 250 kW
Speed in RPM 2900 RPM
Maximum Flow Rate in m³/h 540 m³/h
Maximum Head in Metre 320 m
Outlet Sizes in Inches 7″

Introducing C.R.I.’s Stainless Steel Grand Series Submersible Pumps, the epitome of engineering excellence for high flow and high head applications. Available in 8”, 10”, 12”, and 14” diameters, these pumps deliver maximum flows of up to 810 m³/h and heads of up to 486 meters. Constructed from corrosion-resistant stainless steel, they ensure superior performance across diverse applications, including mining, firefighting, and heavy-duty industrial water supply. Designed to NEMA standards, these pumps guarantee exceptional reliability and global compliance.

Applications

Key Features

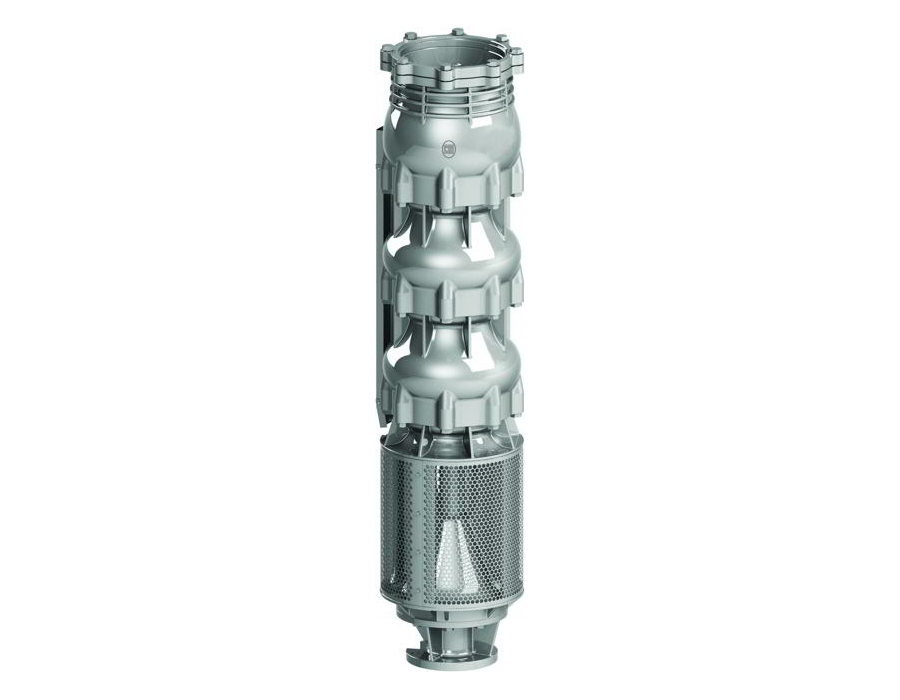

All you need to know about – Submersible Pumps (14” Stainless Steel Grand Series)

Specifications

Nominal Diameter 14″ Stainless Steel Grand submersible pumps
Power Range in kW 75 – 300 kW
Speed in RPM 2900 RPM
Maximum Flow Rate in m³/h 810 m³/h
Maximum Head in Metre 196 m
Outlet Sizes in Inches 9″
