Industrial Pumps

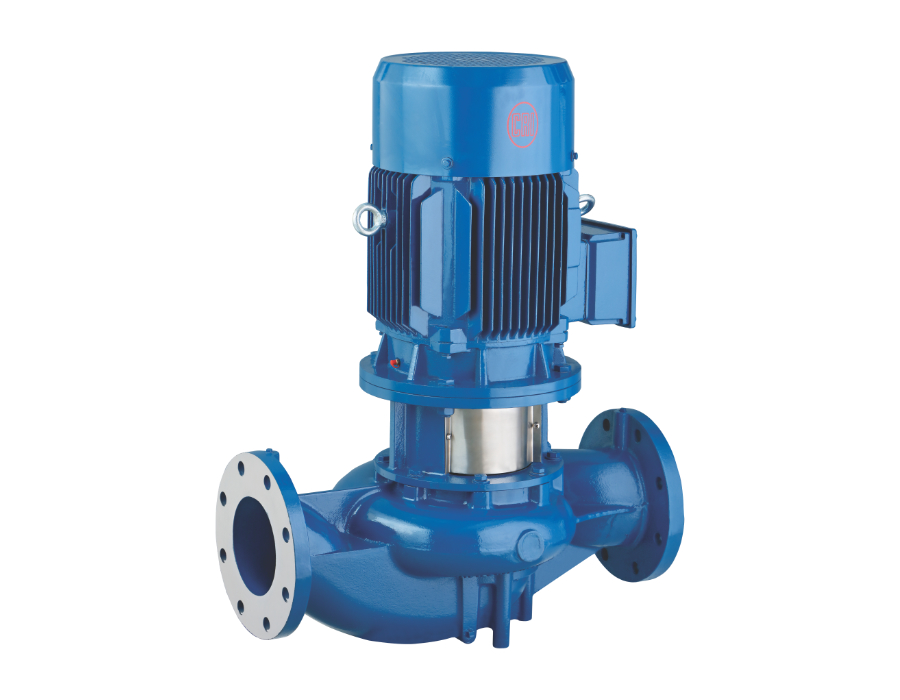

Introducing the VC Series Vertical Inline Pumps, a testament to engineering precision tailored to address the exacting needs of contemporary fluid management systems. These pumps are optimally crafted for applications demanding both high efficiency and minimal spatial footprint, including commercial building services, HVAC systems, and water treatment facilities. Their compact, close-coupled design incorporates a top pull-out construction, facilitating seamless maintenance without disruption to surrounding infrastructure. Enhanced by premium efficiency motors and a resilient mechanical seal, the VC Series guarantees peak performance and longevity across diverse hydraulic conditions, solidifying its position as the discerning choice for industry experts worldwide.
Applications
- Water supply
- Irrigation
- Pressure boosting
- Fire fighting
- Circulation and transfer application
- Building and Industries
Key Features
- Default mechanical seal option
- High efficiency
- Wide hydraulic ranges
- Pre lubricated sealed bearing ensures long life
All you need to know about – Industrial Pumps (VS/VC Series)
Specifications
Standard | Manufacturer Standard |
Head | Up to 96 m |
Maximum Flow | Up to 503 m³/h |
Speed | 1450 / 2900 RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | Up to 200 mm |
Power | Up to 90 kW |
Liquid Temperature | Up to 90°C |
Max Solid Size | Not applicable |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | Cast Iron |
Bearing Lubrication | Grease |
Flange Standard | DIN |
Maximum Working Pressure | Up to 10 bar |
Part Name | Material |
---|---|
Impeller | SS 304 / Noryl / Cast Iron |
Bracket | Cast Iron |
Casing | Cast Iron |
Motor Shaft | SS 410 |
Motor Body | SS 304 |

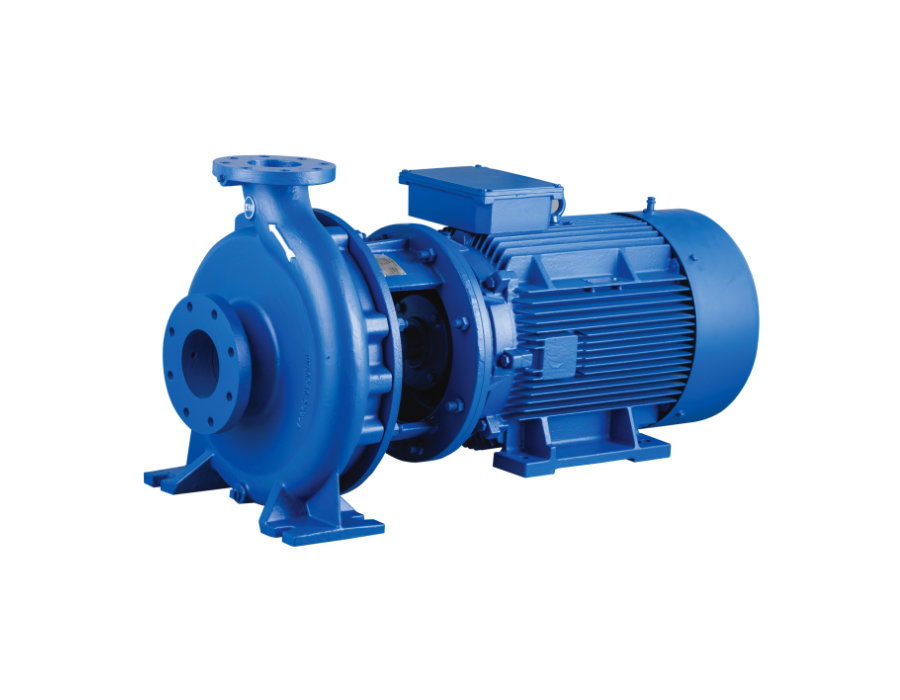

Introducing the CCW Series, representing the epitome of close-coupled centrifugal pump design, meticulously crafted for those who prioritize both style and functionality in their fluid management systems. These pumps seamlessly integrate with standard induction motors via a sophisticated coupling mechanism, resulting in a streamlined, space-saving profile that enhances any installation. Engineered to operate without the need for frequent alignments, the CCW Series ensures prolonged durability of mechanical seals and bearings, showcasing the fusion of precision engineering with outstanding performance. Well-suited for sophisticated applications such as pressure boosting, HVAC systems, and fire safety, the CCW Series distinguishes itself through its sturdy construction and unparalleled efficiency in every operation.
Applications
- Water supply
- Irrigation
- Pressure boosting
- Heating
- Fire fighting
- Circulation and transfer application
- Pressure boosting
- Building and Industries
Key Features
- Default mechanical seal option
- High operating efficiency
- Wide hydraulic ranges
- Pre lubricated sealed bearing ensures long life
All you need to know about – Industrial Pumps (CCW Series)
Specifications
Standard | Manufacturer Standard |
Head | Up to 95 m |
Maximum Flow | Up to 550 m³/h |
Speed | 1450 / 2900 RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | Up to 150 mm |
Power | Up to 45 kW |
Liquid Temperature | Up to 90°C |
Max Solid Size | Not applicable |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | Cast Iron, Bronze, Stainless Steel & Alloy Steel |
Bearing Lubrication | Grease |
Flange Standard | DIN |
Maximum Working Pressure | Up to 16 bar |
Material of Construction
Part Name | Material |
---|---|
Impeller | SS 304 / Noryl / Cast Iron |
Bracket | Cast Iron |
Casing | Cast Iron |
Motor Shaft | SS 410 |
Motor Body | SS 304 |
